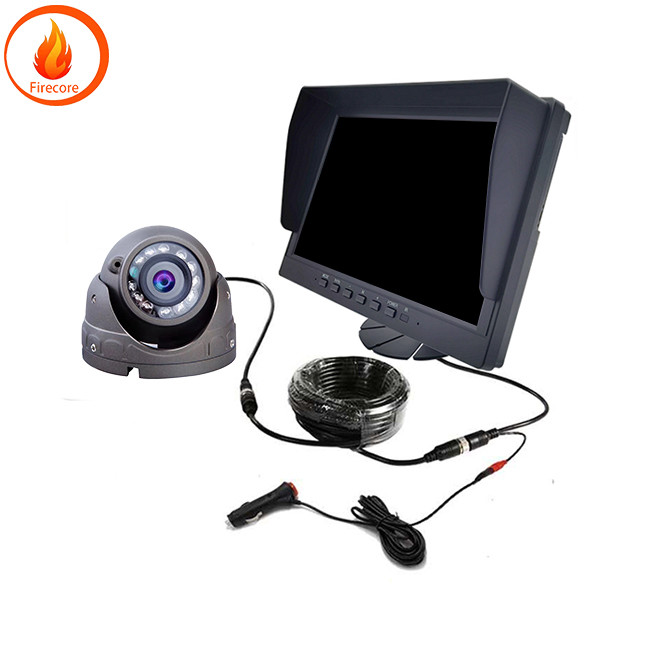

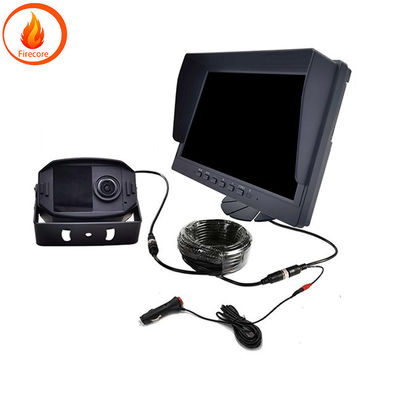

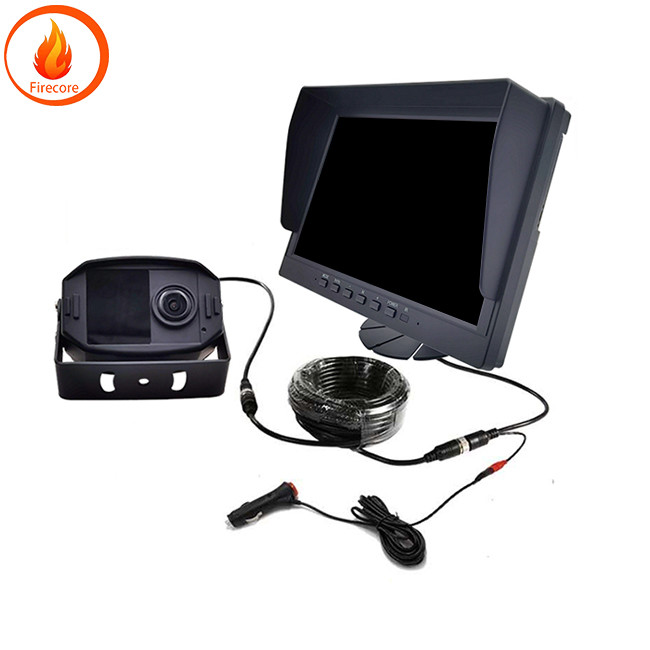

वाहन कैमरा निगरानी प्रणाली रिवर्स छवि ट्रक सड़क मॉनिटर डिस्प्ले स्क्रीन
कार में कैमरों का वितरण:
वर्तमान में कार पर लगाए गए कैमरों को मुख्य रूप से उनके स्थापना स्थान के आधार पर पांच श्रेणियों में विभाजित किया गया हैःसामने देखने वाले कैमरे, चारों ओर देखने वाले कैमरे, पीछे देखने वाले कैमरे, साइड देखने वाले कैमरे और अंतर्निहित कैमरे
फ्रंट व्यू कैमरा: mainly installed on the front windshield to achieve visual perception and recognition functions during driving It can be divided into front view main camera front view narrow angle camera and front view wide angle camera according to their functions
सामने की ओर मुख्यालय कैमरा: This camera is used as the main camera in the ADAS system of L2 The field of view angles are generally 30 ° 50 ° 60 ° 100 ° and 120 ° and the detection distance is generally 150 - 170 meters The camera output format is RCCB or RCCC
Forward looking wide - angle camera The main function of this camera is to recognize objects that are close in distance mainly used in urban road conditions low - speed driving and other scenes Its field of view angle is between 120 ° -150 ° and the detection distance is about 50 meters After the large - scale installation of the 8MP lens in subsequent vehicles this camera is not needed
फ्रंट व्यू संकीर्ण कोण कैमरा: The main function of this camera is to recognize targets such as traffic lights and pedestrians Generally narrow angle lenses are used and lenses around 30-40 ° can be selected And the pixels of this lens are generally the same as those of the front facing main camera The camera adopts a narrow angle has higher pixel density and farther detection distance and can generally detect up to 250 meters or even longer distances
8 एमपी कैमरा लगाने के बाद सामने के मुख्य कैमरे का एफओवी 120 डिग्री तक पहुंच सकता है, जिसकी अब आवश्यकता नहीं हो सकती है।
परिवेश कैमराः mainly installed around the vehicle body usually using 4 - 8 cameras which can be divided into forward facing fisheye camera left facing fisheye camera right facing fisheye camera and rear facing fisheye camera Used for displaying panoramic panoramic view function as well as visual perception and object detection integrating parking function The commonly used color matrix is RGGB as there is a need for color restoration
रियर व्यू कैमराः आमतौर पर ट्रंक पर स्थापित, मुख्य रूप से पार्किंग सहायता के लिए दृश्य क्षेत्र का कोण 120 और 140 डिग्री के बीच है और पहचान दूरी लगभग 50 मीटर है
साइड फ्रंट व्यू कैमरा: installed at the B - pillar or vehicle rearview mirror the field of view angle of this camera is generally 90 ° -100 ° and the detection distance is about 80 meters The main function of this camera is to detect lateral vehicles and bicycles
साइड और रियर व्यू कैमरा: generally installed at the front fender of the vehicle the field of view angle of this camera is generally around 90 ° and the detection distance is also about 80 meters It is mainly used for scene applications such as vehicle lane changing and merging into other roads
हम अनुसंधान और विकास उत्पादन और वाहन निगरानी के एक पेशेवर निर्माता हैं
कार वीडियो रिकॉर्डर कार कैमरा कार यूएसबी कैमरा कार डिस्प्ले यूएसबी कैमरा
